SOLAR POWER PLANT

“we Harness SOLAR ENERGY For the Generation of Electricity”

solar power plant

  • A  Solar Power plant is one of the types which uses the solar radiation of the sun and converts it into electrical Energy. This is a renewable source of energy as the sun is natural and the heat is also free of cost.
  • Two major method in these power plant,
  • On grid solar power plant.
  • Off grid solar power plant.

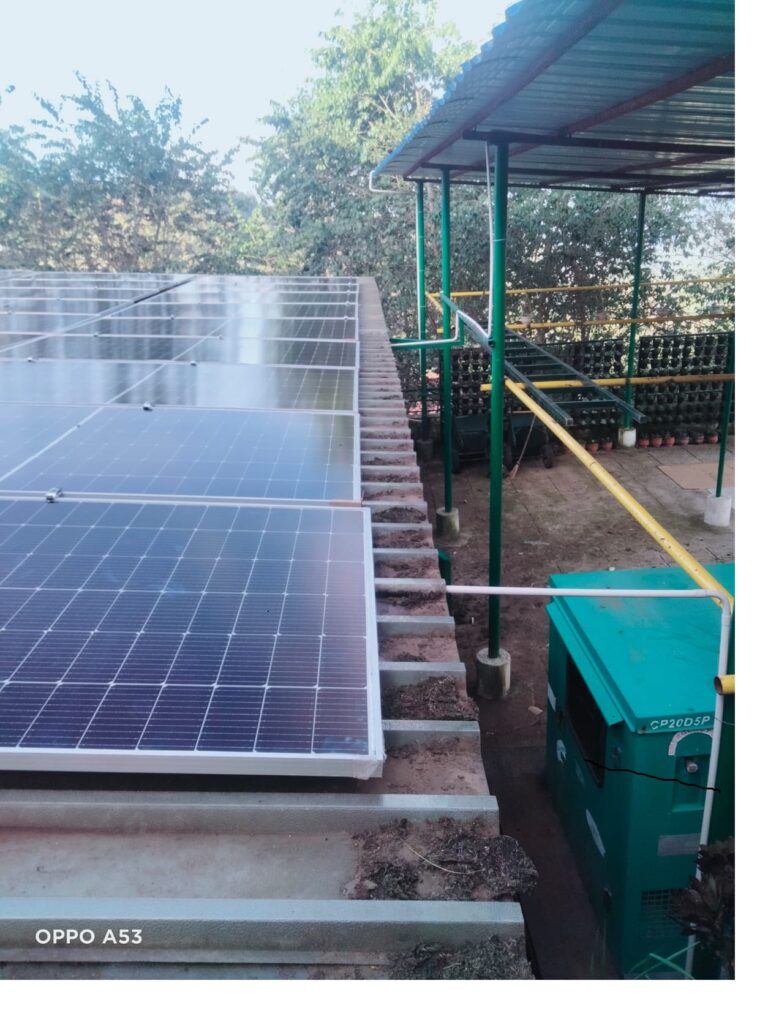

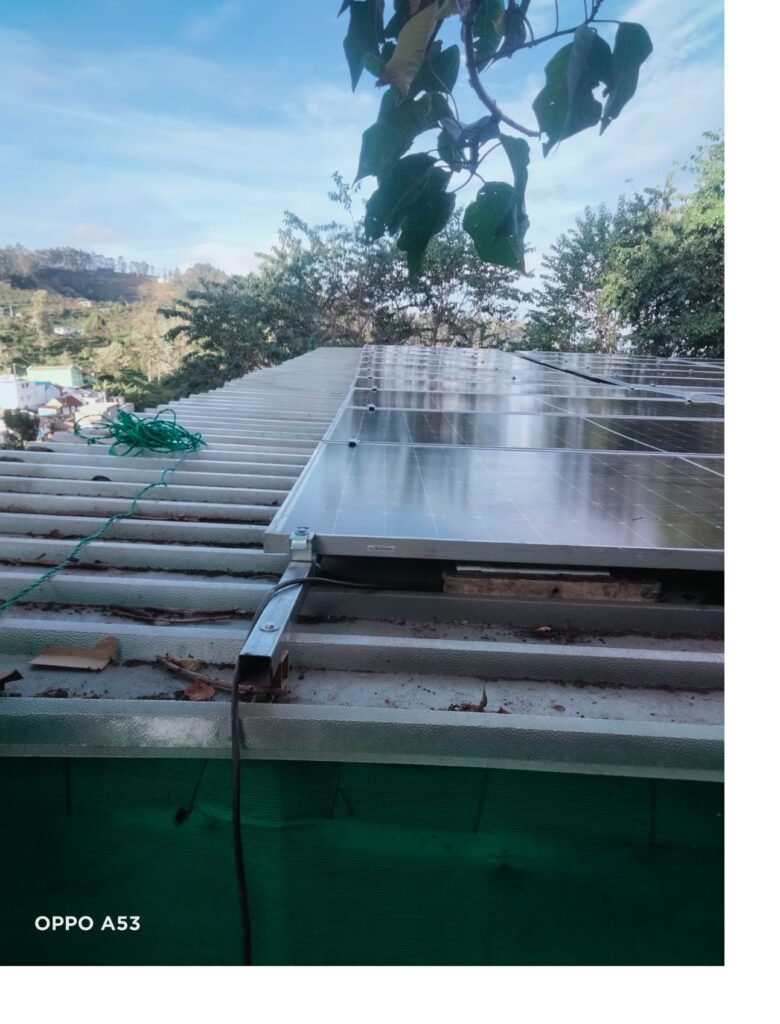

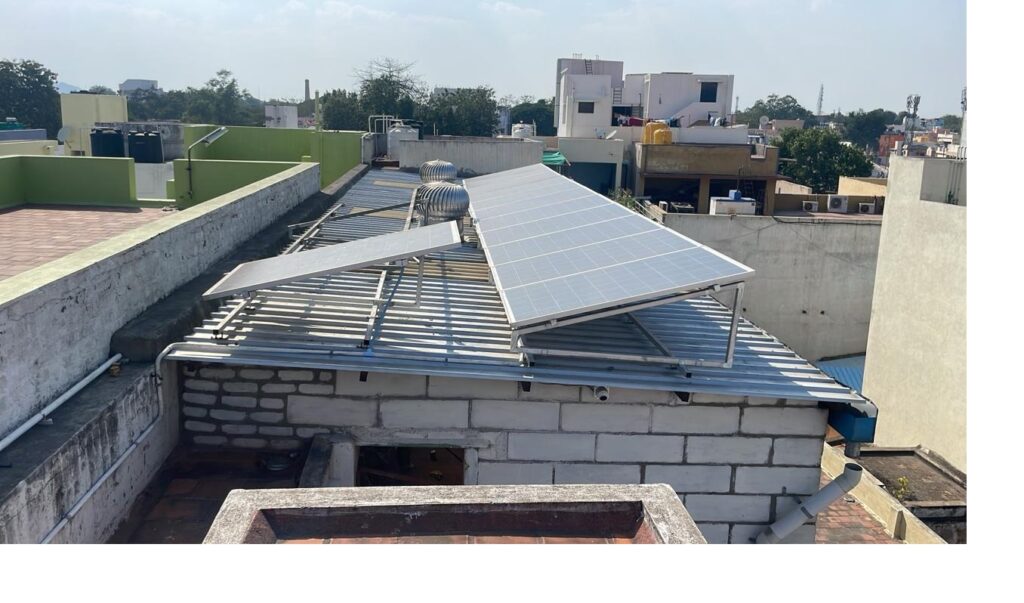

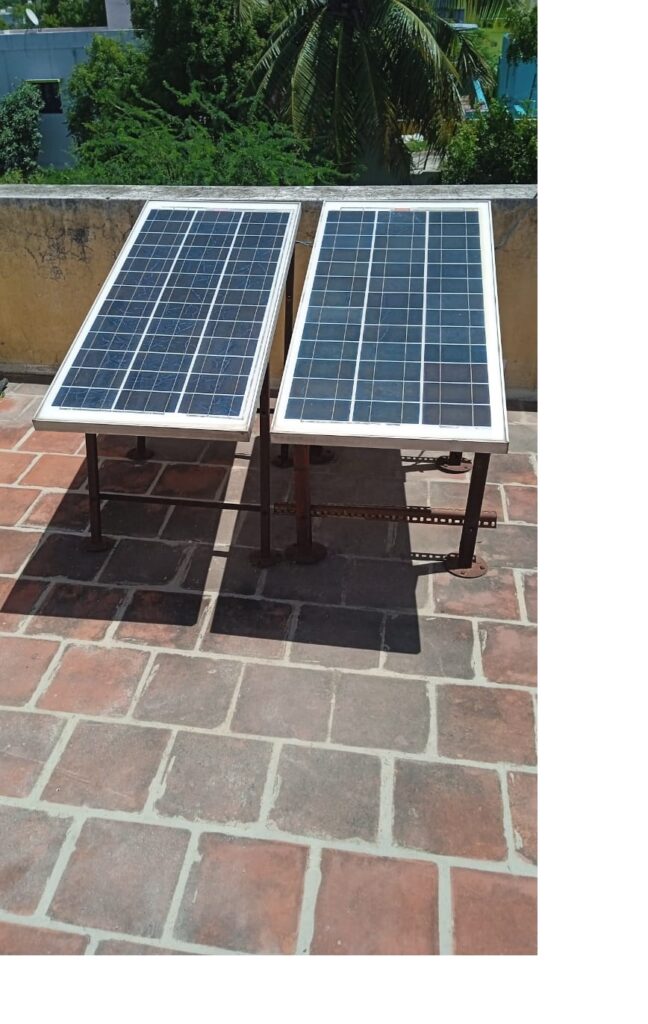

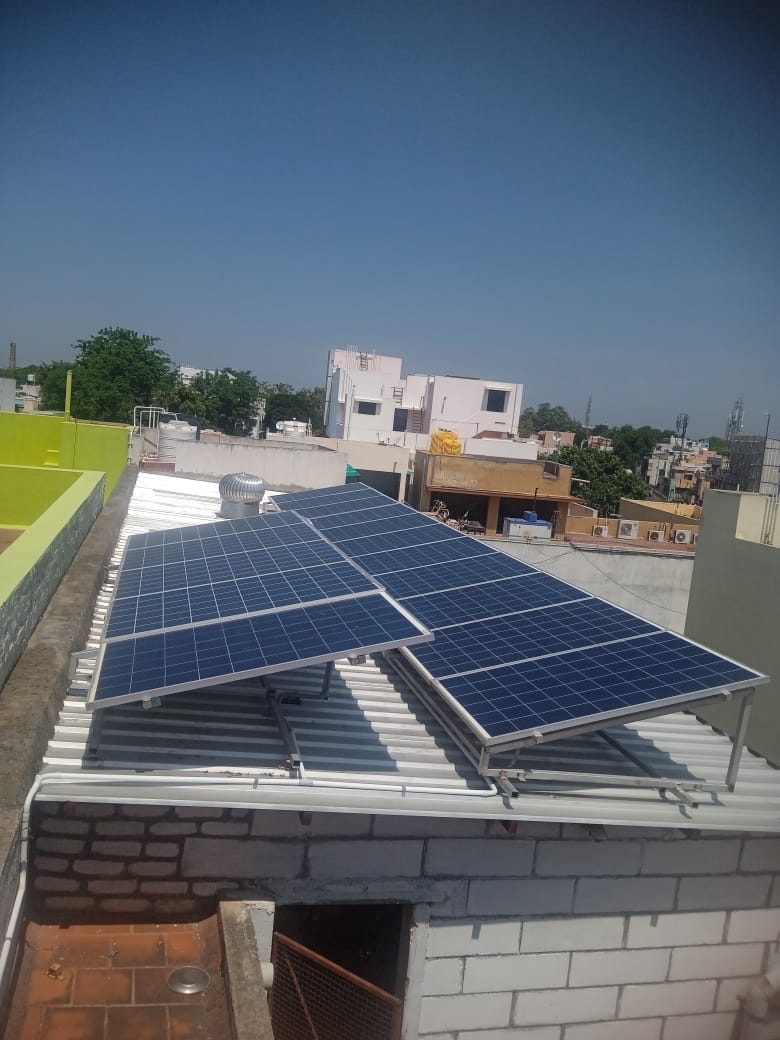

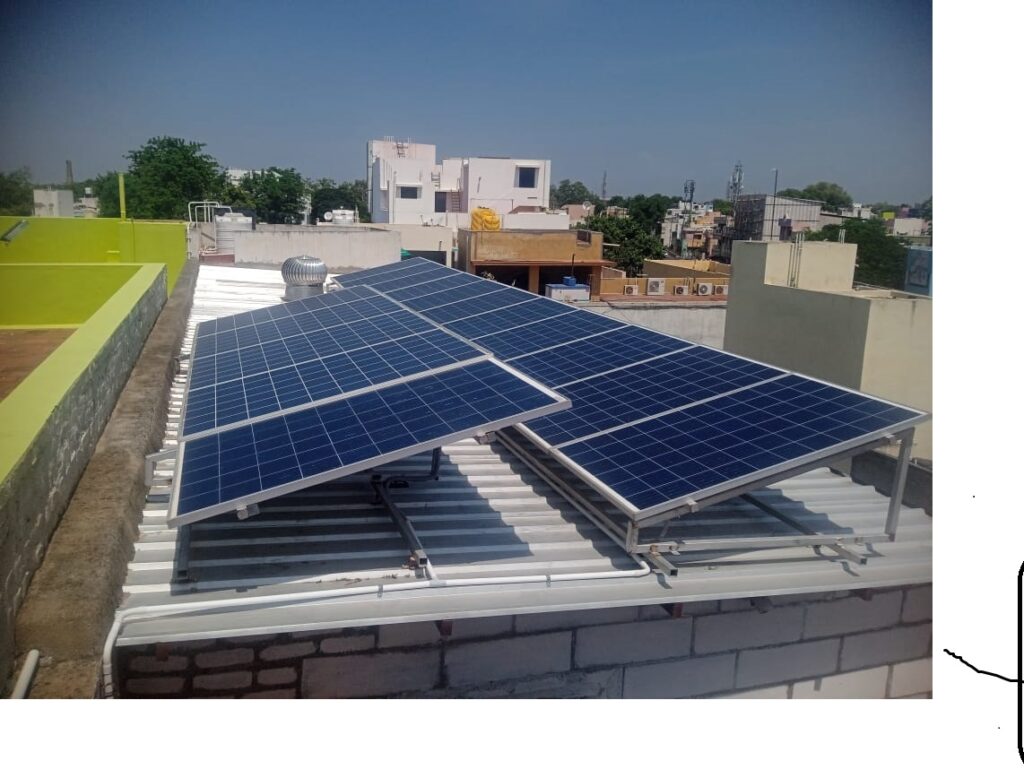

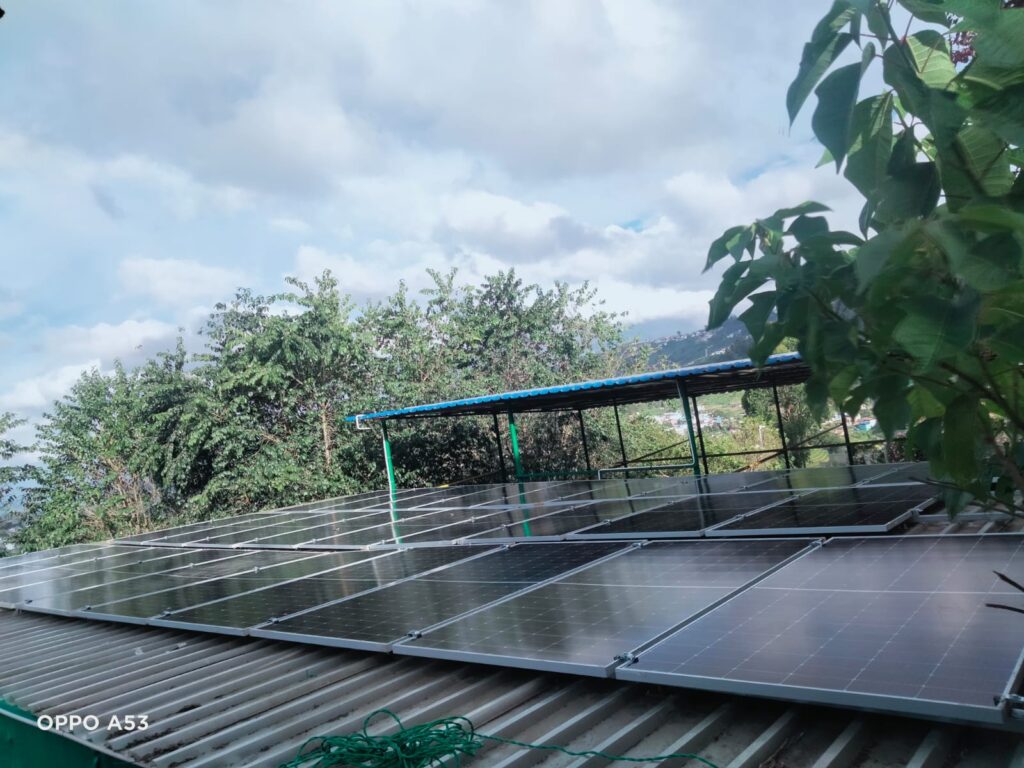

  • Gallery Image
  • Gallery Image
  • Gallery Image
  • Gallery Image
  • Gallery Image

ON-GRID SOLAR POWER PLANT

  • The  System consists of Solar PV modules, Solar Inverter with in built MPPT charge controlling unit. The Grid Tied solar inverter could be connect with the Electrical line directly without battery.
  • Whenever the sunlight is available the electricity generated by PV modules will be directly exported to the Grid without storing in Batteries.
  • It is best suited for customers with stable grid power and minimal power cuts.

           APPLICATION

  1. It allows house owners to use solar energy for their electricity needs and feed any surplus power back into the Grid.

For Domestic and commercial

Exploring the diverse Applications of solar energy.

OFF-GRID SOLAR POWER PLANT

  • The System consists of solar PV modules, Solar Inverter with in built charge controlling unit and Batteries.
  • According to the customers electrical load requirement the Inverter, Solar PV module and Battery capacity varies.
  •   APPLICATIONS
  • Residential houses
  • Apartments
  • Schools
  • Commercial buildings
  • Show Rooms
  • Hospitals
  • Super Markets
  • Shopping Malls

OFF-Grid solar power plant Specifications

ATR MODELSSPP OG
1000		SPP OG
2000		SPP OG
3000		SPP OG
5000		SPP OG
10000
Capacity1 KW2 KW3 KW4 KW5 KW
Battery Backup3 Hours3 Hours3 Hours3 Hours3 Hours
PV Modules250Wx4 Nos.250Wx8 Nos.250Wx12
Nos.		250Wx16
Nos.		250Wx20 Nos.
No. of batteries150Ahx2 Nos.100Ahx4 Nos.150Ahx4 Nos.100Ahx6
Nos.		150Ahx12 Nos.
Inverter1KVA-24V2KVA-24V3KVA-24V4KVA-36V5KVA-48V
Junction box1 No1 No1 No1 No1 No
Mounting Structure1 Set1 Set1 Set1 Set1 Set
UV protected CableAs ReqAs ReqAs ReqAs ReqAs Req

For Commercial and industrial

“what are grid connected And Off grid solar plants”

 WORKING OF SOLAR PV POWER PLANT:

  • The Major components of solar PV power plant,

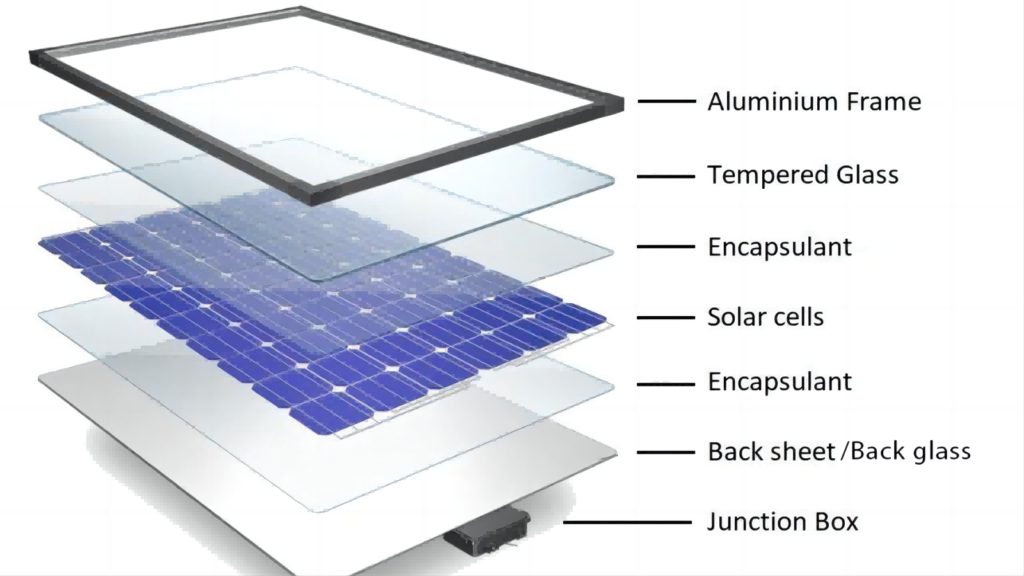

  • Photovoltaic Panel
  • Inverter
  • Energy storage Devices
  • Charge Controller
  • System balancing Component
  • The working of the power plant can be started from the photovoltaic panels. These are the primary components that collects solar radiation and convert into electricity.
  • The Inverter converts this obtained DC into AC supply and stores it in energy stored devices. The charge controller is the regulator and it actuates the power supply accordingly.

ON-Grid solar power plant Specifications

ATR MODELSSPP GT 1000SPP GT 2000SPP GT 3000SPP GT 5000SPP GT 10000SPP GT 20000
Capacity1KW2KW3KW5KW10KW20KW
PV Modules250Wx4 Nos.250WX8 Nos.250Wx12 Nos.250Wx16 Nos.250Wx40 Nos.250Wx80 Nos.
Inverter1 KVA-500V2 KVA-500V3 KVA-500V5 KVA-800V10 KVA-1000V20 KVA-1000V
PhaseSingle phaseSingle phaseSingle phaseThree phaseThree phase Three phase
AC & DC
Distribution		1 Set1 Set1 Set1 Set1 Set1 Set
Mounting Structure1 Set1 Set1 Set1 Set1 Set1 Set
UV protected cableAs ReqAs ReqAs ReqAs ReqAs ReqAs Req

FEATURES OF SOLAR POWER PLANT

  • PV module capture sunlight and turn it into useful electrical current that can be used anywhere.
  • Solar electric system may be independent of the utility grid since they can be combined with battery storage, making them cost effective for distant sites.
  • Dependable with the service life of 25+ years of assured power.

CONSTRUCTION OF POWER PLANT

  •            CIVIL WORKS

    • Site Leveling.
    • Supports and other equipment foundations.
    • Buildings and structures.

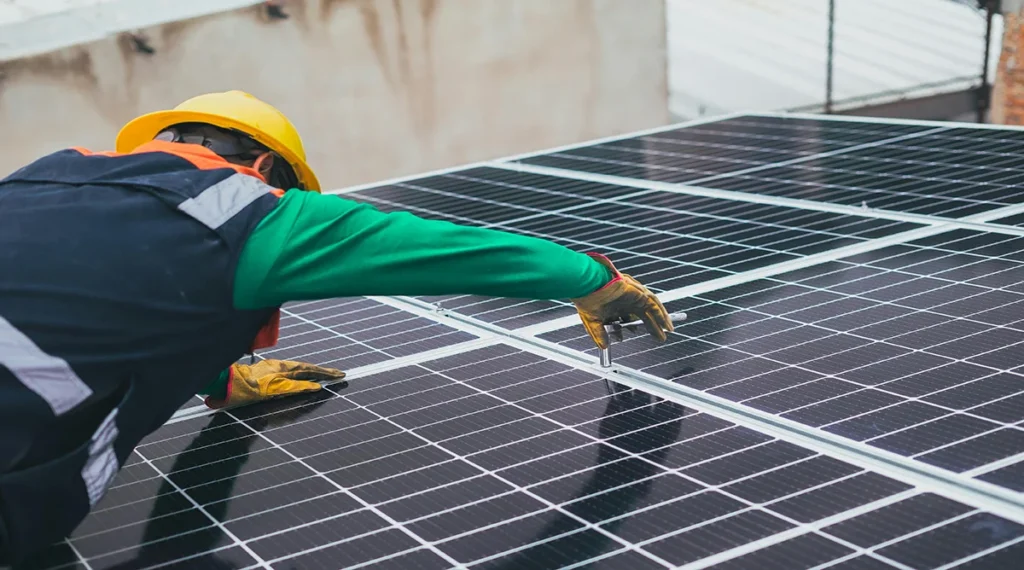

  •               INSTALLATION WORKS

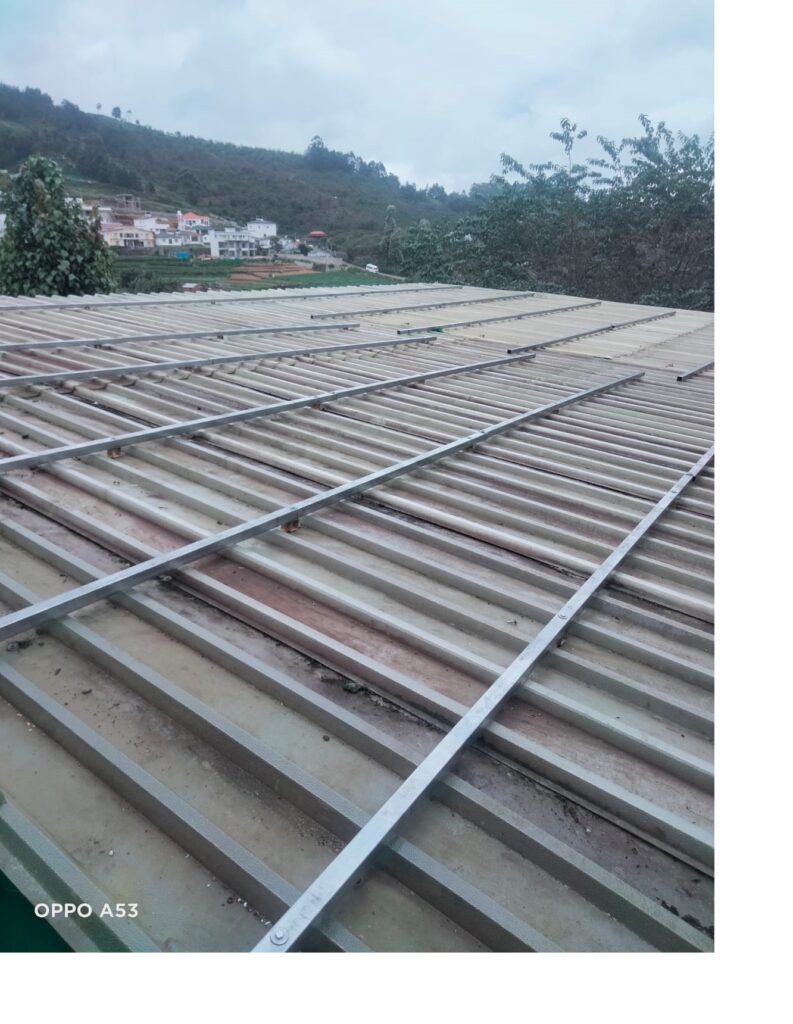

    • Mounting structure installation.
    • Solar PV Module installation.
    • Installation of junction box, inverter
    • Installation of Lightning arrester, AC & DC earthing

COMMISSIONING OF POWER PLANT:

                 With the progress of the project, PV modules, equipment, wires, cables, inverters, etc. have been installed, powered on and tested; no-load trial operation has been kicked off; at this stage, corresponding system schemes shall be made to guide the commissioning of corresponding system. At the same time, the details of the commissioning shall be paid attention to and treated with timely solutions.

MAINTENANCE OF POWER PLANT:

  • The surface of PV modules shall be kept clean. Dry or wet, soft and clean cloth shall be used to wipe the PV modules. Do not wipe the PV modules with corrosive solvents or hard objects.
  • Live warning signs on PV modules shall not be lost.
  • Structural and electrical connection of inverter shall be kept complete, and shall be free corrosion and ash deposition.
  • Cooling fans of modules, reactors and transformers in the inverters shall be automatically started and stopped normally according to temperature.
